TCP/IP Model

+1 vote
264 views

TCP/IP means Transmission Control Protocol and Internet Protocol. It is the network model used in the current Internet architecture as well.

Protocols are set of rules which govern every possible communication over a network. These protocols describe the movement of data between the source and destination or the internet. These protocols offer simple naming and addressing schemes.

The TCP/IP Model was developed by Department of Defence's Project Research Agency (ARPA, later DARPA) as a part of a research project of network interconnection to connect remote machines.

The features that stood out during the research, which led to making the TCP/IP reference model were:

  • Support for a flexible architecture. Adding more machines to a network was easy.
  • The network was robust, and connections remained intact untill the source and destination machines were functioning.

The overall idea was to allow one application on one computer to talk to(send data packets) another application running on different computer.



TCI/IP model consists of 4 different layers:

  1. Network Access Layer.
  2. Internet Layer.
  3. Transport Layer.
  4. Application Layer.



LEVEL 1

Network Access Layer is the first layer of the four layer TCP/IP model. Network Access Layer defines details of how data is physically sent through the network, including how bits are electrically or optically signaled by hardware devices that interface directly with a network medium, such as coaxial cable, optical fiber, or twisted pair copper wire.

The protocols included in Network Access Layer are Ethernet, Token Ring, FDDI, X.25, Frame Relay etc.

The most popular LAN architecture among those listed above is Ethernet. Ethernet uses an Access Method called CSMA/CD (Carrier Sense Multiple Access/Collision Detection) to access the media, when Ethernet operates in a shared media. An Access Method determines how a host will place data on the medium.

LEVEL 2

Internet Layer is the second layer of the four layer TCP/IP model. The position of Internet layer is between Network Access Layer and Transport layer. Internet layer pack data into data packets known as IP datagrams, which contain source and destination address (logical address or IP address) information that is used to forward the datagrams between hosts and across networks. The Internet layer is also responsible for routing of IP datagrams.

Packet switching network depends upon a connectionless internetwork layer. This layer is known as Internet layer. Its job is to allow hosts to insert packets into any network and have them to deliver independently to the destination. At the destination side data packets may appear in a different order than they were sent. It is the job of the higher layers to rearrange them in order to deliver them to proper network applications operating at the Application layer.

The main protocols included at Internet layer are IP (Internet Protocol), ICMP (Internet Control Message Protocol), ARP (Address Resolution Protocol), RARP (Reverse Address Resolution Protocol) and IGMP (Internet Group Management Protocol).

LEVEL 3

Transport Layer is the third layer of the four layer TCP/IP model. The position of the Transport layer is between Application layer and Internet layer. The purpose of Transport layer is to permit devices on the source and destination hosts to carry on a conversation. Transport layer defines the level of service and status of the connection used when transporting data.

The main protocols included at Transport layer are TCP (Transmission Control Protocol) and UDP (User Datagram Protocol).

LEVEL 4

Application layer is the top most layer of four layer TCP/IP model. Application layer is present on the top of the Transport layer. Application layer defines TCP/IP application protocols and how host programs interface with Transport layer services to use the network.

Application layer includes all the higher-level protocols like DNS (Domain Naming System), HTTP (Hypertext Transfer Protocol), Telnet, SSH, FTP (File Transfer Protocol), TFTP (Trivial File Transfer Protocol), SNMP (Simple Network Management Protocol), SMTP (Simple Mail Transfer Protocol) , DHCP (Dynamic Host Configuration Protocol), X Windows, RDP (Remote Desktop Protocol) etc.

posted Aug 29, 2017 by Ganesh S

  Promote This Article
Facebook Share Button Twitter Share Button LinkedIn Share Button


Related Articles

The Network Access Layer of the TCP/IP model is associated with the Physical Layer (Layer 1) and the Data Link layer (Layer 2) of the OSI model. The Network Access Layer's function is to move bits (0s and 1s) over the network medium.

The OSI Physical layer is responsible for converting the frame into a stream of bits suitable for the transmission medium. The OSI Physical layer manages and synchronizes signals for the actual transmission. On the destination device, the Physical layer reassembles these signals into a data frame.

The OSI Data Link layer is again subdivided into the following two sub layers according to their function:

Media Access Control (MAC) Sublayer :— MAC sublayer provides an interface with the network adapter.

Logical Link Control (LLC) Sublayer :— LLC sublayer is responsible for error-checking functions for frames delivered also responsible for managing links between communicating devices.

Structure of an Ethernet Frame:-

The data packets from Internet Layer is moved to Network Access Layer as it moves down the TCP/IP protocol stack. There is a size limitation for Ethernet Frame. The total size of the ethernet frame must be between 64 bytes and 1,518 bytes (not including the preamble). Network Access Layer Breaks Internet Layer data (IP Datagram) into smaller chunks, if necessary, which will become the payload of ethernet frames. A Frame includes data to be transmitted and also a header and a trailer which contain information that the network adapters on the ethernet need to process the frame.

The total size of the ethernet frame must be between 64 bytes and 1,518 bytes (not including the preamble). A frame shorter than the minimum 64 bytes but with a valid CRC is called as a runt. In most cases, such frames arise from a collision. Any frame which is received and which is greater than the maximum frame size, is called a "giant". A "giant" is longer than 1518 bytes yet have a valid CRC. Both runts and giants are considered as invalid.
enter image description here

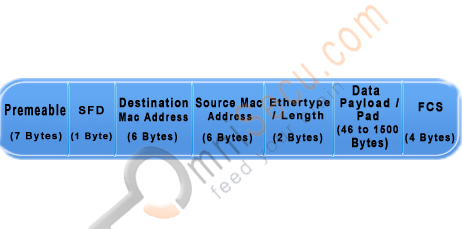

Figure of Structure of an Ethernet Frame
