Use XMLHttpRequest To Call ASP.NET Web API

+4 votes
141 views

Most of the times developers use jQuery $.ajax() to call ASP.NET Web API from the client side script. At times, however, you may need to use plain JavaScript to invoke the Web API. Consider a situation wherein you wish to call Web API from HTML5 Web Worker. Now, you can't use jQuery to accomplish your task because DOM access is not allowed inside a web worker. Another reason might be that your project don't have any dependency on jQuery or such libraries. Luckily, calling a Web API using XMLHttpRequest object and plain JavaScript is not hard. This article discusses how that can be done with a sample Customer Web API.

In this example you will use a Customer Web API that does CRUD operations on the Customers table of Northwind database. This Web API is shown below:

public class CustomerController : ApiController
{
    NorthwindEntities db = new NorthwindEntities();

    public List<Customer> Get()
    {
        return db.Customers.ToList();
    }

    public Customer Get(string id)
    {
        return db.Customers.Find(id);
    }

    public string Post(Customer obj)
    {
        db.Customers.Add(obj);
        db.SaveChanges();
        return "Customer added successfully!";
    }

    public string Put(string id,Customer obj)
    {
        db.Entry(obj).State = EntityState.Modified;
        db.SaveChanges();
        return "Customer modified successfully!";
    }

    public string Delete(string id)
    {
        db.Entry(db.Customers.Find(id)).State = EntityState.Deleted;
        db.SaveChanges();
        return "Customer deleted successfully!";
    }
}

As you can see CustomerController consists of five methods namely Get(), Get(id), Post(), Put() and Delete(). These methods deal with the GET, GET, POST, PUT and DELETE verbs respectively.

To call this Web API from client side script you will create a JavaScript object - AjaxHelper - that consists of five methods namely SelectAll(), SelectByID(), Insert(), Update() and Delete(). You will then call t these methods to invoke the respective Web API action.

The AjaxHelper object is shown below:

function AjaxHelper(baseUrl)
{
    this._baseUrl = baseUrl;

    var callWebAPI = function (url, verb, data, callback) {

        var xhr = new XMLHttpRequest();

        xhr.onload = function (evt) {
            var data = JSON.parse(evt.target.responseText);
            callback(data);
        }

        xhr.onerror = function () {
            alert("Error while calling Web API");
        }

        xhr.open(verb, url);
        xhr.setRequestHeader("Content-Type", "application/json");
        if (data==null) {
            xhr.send();
        }
        else {
            xhr.send(JSON.stringify(data));
        }
    }

    this.SelectAll = function (callback) {
        callWebAPI(this._baseUrl, "GET", null, callback);
    }

    this.SelectByID = function (id, callback) {
        callWebAPI(this._baseUrl + "/" + id, "GET", null, callback);
    }

    this.Insert = function (obj, callback) {
        callWebAPI(this._baseUrl, "POST", obj, callback);
    }

    this.Update = function (id, obj, callback) {
        callWebAPI(this._baseUrl + "/" + id, "PUT", obj, callback);
    }

    this.Delete = function (id, callback) {
        callWebAPI(this._baseUrl + "/" + id, "DELETE", null, callback);
    }
}

The AjaxHelper object receives base URL of the Web API as its constructor parameter and stores it in a _baseUrl private variable. Then the code shows a private helper function - callWebAPI() - that creates and configures a new instance of XMLHttpRequest object. The callWebAPI() function accepts four parameters - url, verb, data and callback - and configures five aspects of the XMLHttpRequest object:

  • It wires a success function by handling the load event of the XMLHttpRequest.
  • It wires an error function by handling the error event of the XMLHttpRequest.
  • It opens a URL for a specific HTTP verb using open() method.
  • It sets the content-type header to application/json since we will be using JSON format for the communication.
  • It calls the send() method by passing the data parameter.

Notice the onload event handler. It retrieves the data returned by the Web API using responseText property (which will be in JSON format) and parses it into JavaScript object. The callback parameter supplies a callback function that will be invoked with the Web API call succeeded.

Then the code shows a series of functions of the AjaxHelper object. The SelectAll(), SelectByID(), Insert(), Update() and Delete() methods call the callWebAPI() function by passing the required URL, HTTP verb, data and callback.

You can now use the AjaxHelper object as shown below:

var ajaxHelper = new AjaxHelper("/api/customer");

var selectAllCallback = function (customers) {
    alert(customers.length);
}

var selectByIDCallback = function (customer) {
    alert(customer.CompanyName);
}

var actionCallback = function (msg) {
    alert(msg);
}

//GET
ajaxHelper.SelectAll(selectAllCallback);
ajaxHelper.SelectByID("ALFKI", selectByIDCallback);

//POST
var obj = {
    CustomerID: "ABCDE",
    CompanyName: "Company 1",
    ContactName: "Contact 1",
    Country: "USA"
}
ajaxHelper.Insert(obj, actionCallback);

//PUT
obj.CompanyName = "Company 2";
ajaxHelper.Update("ABCDE", obj, actionCallback);

//DELETE
ajaxHelper.Delete("ABCDE", actionCallback);

As you can see calling a Web API is now a matter of invoking the methods of AjaxHelper object. The callback functions simply display an alert() that confirms that the underlying operation was successful.

posted Nov 4, 2016 by Shivaranjini

  Promote This Article
Facebook Share Button Twitter Share Button LinkedIn Share Button


Related Articles

ASP.NET Web API map HTTP verbs to an action method. The Web API actions must follow prescribed signatures in order to work as expected. For example, a Web API method handling POST requests usually takes a single parameter. More often than not this parameter is of a complex type that wraps the actual pieces of data in its properties. This arrangement goes well when you know the exact model being passed by a client (see below).

public string Post(Customer obj)
{
 ...
}

However, this arrangement is of no use when a client is sending arbitrary pieces of data not mapping to any model. Luckily, Web API provides a way to deal with such data. This article discusses just that.

Consider a case where a Web API is expecting data to be inserted in a table from a client. The data in question consists of arbitrary pieces of information and can't be mapped to a predefined model class. In such cases you can make use of FormDataCollection class. The FormDataCollection class resides in System.Net.Http.Formatting namespace and represents a dictionary of arbitrary keys and values.

The FormDataCollection class should not be confused with the FormCollection class of ASP.NET MVC. They reside in different namespaces. The FormDataCollection resides in System.Net.Http.Formatting whereas FormCollection resides in System.Web.Mvc namespace.

So, a client can send any number of arbitrary key-value pairs to the Web API and the Web API will receive them as a FormDataCollection. The following Post() method of Web API shows how this is done:

public string Post(FormDataCollection form)
{
    string customerid = form.Get("customerId");
    string company = form.Get("companyName");
    string contact = form.Get("contactName");
    string country = form.Get("country");

    NorthwindEntities db = new NorthwindEntities();
    Customer obj = new Customer()
    {
        CustomerID = customerid,
        CompanyName = company,
        ContactName = contact,
        Country = country
    };
    db.Customers.Add(obj);
    db.SaveChanges();

    return "Customer added successfully!";

}

The Post() method shown above takes a parameter of type FormDataCollection. To read the values from this collection you use Get() method and specify a key name. In the above code the client is sending Customer details such as CustomerID, CompanyName, ContactName and Country. Based on these details a Customer object is formed and added to the Customers DbSet. The changes are saved to the database using SaveChanges(). The Post() method then returns a success method to the client.

To call this Web API method you will write the following jQuery code:

$(document).ready(function () {
  var data = {};
  data.customerID = "ABCDE";
  data.companyName = "Company 1";
  data.contactName = "Contact 1";
  data.country = "USA";

  $.post("/api/customer", data, function(msg){
     alert(msg);
  });

});

As you can see the above code creates a JavaScript object with four properties - customerID, companyName, contactName and country. Although this class mimics the Customer model class that's not necessary. You can add any arbitrary property - value pairs to this object and send it to the Web API.

Once the data object created $.post() method of jQuery is used to call the Web API and the data object is passed to it. The success function displays the message returned from the Web API.

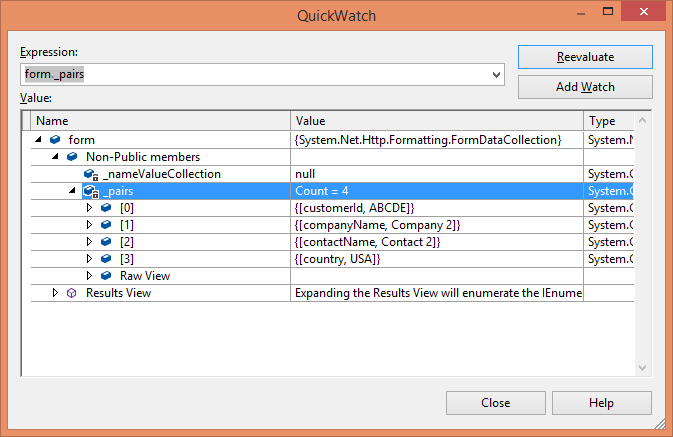

If you run this application you will see the customerID, companyName, contactName and country values in the FormDataCollection.
