LTE Femtocell Architecture

+2 votes

LTE Femtocell Architecture

  1. UE interfaces with a Home eNodeB (HeNB) over air interface. The HeNB is a small eNodeB providing wireless LTE coverage in the customer’s home.
  2. The HeNB interfaces to the mobile network operator (MNO) over a broadband network by interfacing with a broadband access gateway (broadband modem). The mobile operator’s core network obtains access to the HeNB connected to a broadband access device via a security gateway. The security gateway is used to protect the core network against attacks.
  3. In Some cases security gateway resides in Home eNodeB Gateway HeNB GW which is responsible for aggregating traffic from a large number of HeNBs and interfacing with the mobile operator’s Evolved Packet Core (EPC) network.
  4. For the core network HeNB GW bahaves like a regular eNodeB.
  5. The S1-MME interface carries signalling using the LTE S1-MME interface and S1-U carries the data to the GSW.
  6. In the alternate architecture S1-U can directly connect eNB to SGW whereas signalling is passed via the HeNB-GW.
posted Aug 3, 2014 by Samardeep Acharya

  Promote This Article
Facebook Share Button Twitter Share Button LinkedIn Share Button

Related Articles

The femtocell appears to the standard 3G phone as just another cellsite from the host mobile operator. MSC and SGSN communicate to the femtocell gateway in the same way as for other mobile calls. Therefore, all services including phone numbers, call diversion, voicemail etc. operate in exactly the same way as previous.
The connection between the femtocell and the femtocell gateway uses secure IP encryption (IPsec), which avoids interception and there is also authentication of the femtocell itself to ensure it is a valid access point.

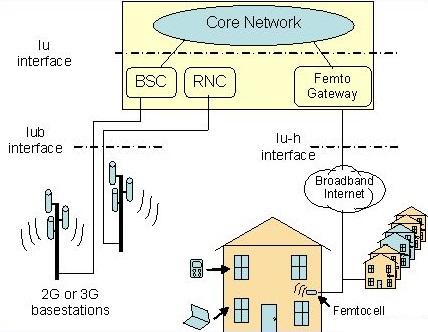

Femtocell Architecture Overview
