GSM Protocol Architecture

0 votes
478 views

GSM Family Snapshot

GSM Family

GSM Protocol Architecture

As I explained in my previous article you have following interfaces in the Pure GSM netwoek
Um Interface: Between MS and BSS
A Interface: Between BSS and NSS
Abis Interface: Between BTS and BSC (both are components of BSS)

Now lets see how protocols connect them with each other.

GSM Control Plane
GSM Control Plane

GSM Data Plane
GSM Data Plane Protocol in TM Mode
GSM Data Plane Protocol in Non TM Mode

posted Jul 17, 2014 by Salil Agrawal

  Promote This Article
Facebook Share Button Twitter Share Button LinkedIn Share Button


Related Articles

In LTE architecture, core network includes Mobility Management Entity (MME), Serving Gateway (SGW), Packet Data Network Gateway (PDN GW) where as E-UTRAN has E-UTRAN NodeB (eNB).

Key Components of a LTE Network
The User Equipment (UE)
The E-UTRAN (The access network)
Evolved Packet Core (EPC) (The core network)

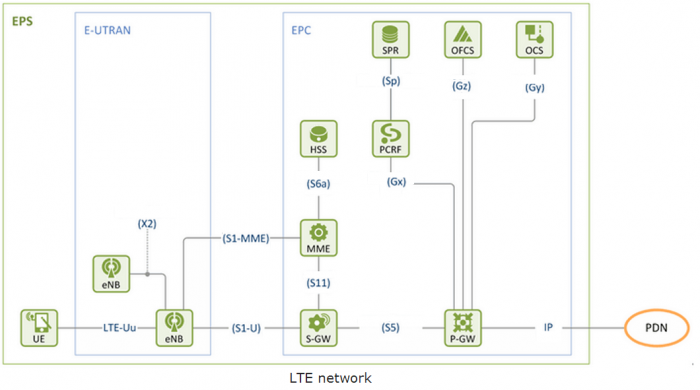

High Level Architecture of LTE
