Binary Search Tree - A Summary

+3 votes
174 views

A binary search tree (BST) binary tree data structure where each node has a comparable key (and an associated value) and satisfies the restriction that the key in any node is larger than the keys in all nodes in that node's left subtree and smaller than the keys in all nodes in that node's right sub-tree.

Many a times binary tree and binary search tree looks same but they are not: a binary tree is a tree where each node has up to two leaves. In a binary tree, a left child node and a right child node contain values which can be either greater, less, or equal to parent node. But in Binary Search Tree each left child contains the value less then the parent node and each right child contains the value greater then Parent.

Balanced Binary Search Tree
BST - Balanced

Unbalanced Binary Search Tree
BST - Unbalanced

Sample C Implementation (Only functions)

typedef struct BST
{
    int data;
    struct BST *lchild,*rchild;
}node;

void insert(node *root,node *new_node)
{
  if(new_node->data < root->data)
     {
     if(root->lchild==NULL)
         root->lchild = new_node;
     else
         insert(root->lchild,new_node);
     }

  if(new_node->data > root->data)
     {
     if(root->rchild==NULL)
         root->rchild=new_node;
     else
         insert(root->rchild,new_node);
     }
}

node *search_recursive(node *root,int key)
{
    if (root == null)
        return null;

    if (root->data == key)
        return node
    else
    {
     if (key < root->data) then
        return search_recursive(root->lchild, key);
     else
        return search_recursive(root->rchild, key);
    }
}

node *search_iterative(node *root,int key)
{
 node *temp;
 temp=root;
    while(temp!=NULL)
    {
      if(temp->data==key)
         {
         return temp;
         }

      if(temp->data>key)
         temp=temp->lchild;
      else
         temp=temp->rchild;
    }
 return NULL;
}

Complexity

        Average    Worst
Space     O(n)      O(n)
Search  O(log n)    O(n)
Insert  O(log n)    O(n)
Delete  O(log n)    O(n)
posted Jun 13, 2014 by Salil Agrawal

  Promote This Article
Facebook Share Button Twitter Share Button LinkedIn Share Button


Related Articles

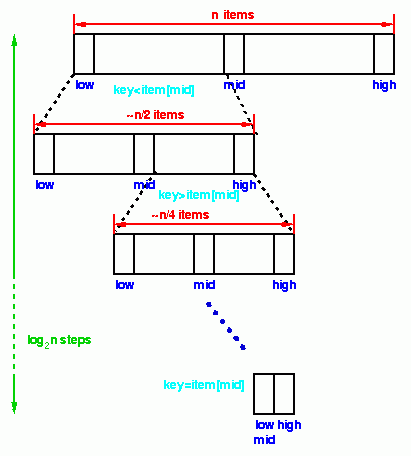

A binary search is a divide and conquer search algorithm which works by comparing an input value to the middle element of the array. Based on the comparison of the input with the middle element we decide if the element is equal or less or more. If less we continue the same algorithm in the left subarray if more then right Subarray. See the following figure which describes the binary search algorithm in the pictorial way.
