Tricky Issue With HTML5 Drag And Drop

0 votes
333 views

Recently a reader asked about a tricky issue with HTML5 drag and drop. The issue is this:

HTML5 supports native drag and drop through draggable property and several events such as dragstart, drag, dragenter, dragleave, dragover and drop. Normally dragstart event handler is where you set the data that is to be transferred between the drag source and drop target. The drop event handler is where you handle the drop of a drag source, access the data transferred and process it further. Now, in this particular case he had handled only the dragstart and drop events. And the drop event handler never used to get called. In other words dragging operation was successful but dropping operation was not.

To understand the problem and the solution clearly, let's quickly recreate the problem in a simple web form. Consider the following HTML markup:

<form id="form1" runat="server">
   <div id="div1" style="width:300px;height:300px;border:2px solid red" draggable="true"></div>
   <div id="div2" style="width:300px;height:300px;border:2px solid red"></div>
</form>

As you can see there are two <div> elements. The first element - div1 - is draggable as indicated by the draggable attribute. The second div - div2 - acts as the drop target.

Now, consider the following jQuery code that handles the dragstart and drop events:

$(document).ready(function () {
     var div1 = $("#div1").get(0);
     var div2 = $("#div2").get(0);

     div1.addEventListener("dragstart", function (e) {
       $("#div1").html('drag started...');
       e.dataTransfer.setData('text/html', 'hello world');
     }, false);

       div2.addEventListener("drop", function (e) {
         e.stopPropagation();
         e.preventDefault();
         $("#div2").html(e.dataTransfer.getData('text/html'));
         return false;
   }, false);
});

The dragstart event handler sets the HTML of div1 to 'drag started...' and sets data to be transferred to 'hello world'. The drop event handler calls stopPropagation() and preventDefault(), and sets the HTML of div2 to the data passed via dataTransfer object. When you drag div1 and drop onto div2, you would expect div2 to display 'hello world'.

Now the tricky thing is that if you run the above code (Chrome or Firefox) it won't fire the drop event at all. The solution is to handle dragover event also. The default handler for dragover doesn't allow drop. This design ensures that something can be dropped only on a developer defined valid target and that all elements don't act as a valid drop targets by default. So, even if you don't want to do anything specific in dragover event handler add one as shown below:

div2.addEventListener("dragover", function (e) {
  e.preventDefault();
}, false);

After adding dragover event handler, run the web form and now the drag-n-drop should work as expected.

posted Nov 23, 2016 by Shivaranjini

  Promote This Article
Facebook Share Button Twitter Share Button LinkedIn Share Button


Related Articles

In HTML , SVG and Canvas are two important graphics features.It is a Vector graphics technology.

What is Vector Graphics?

Vector graphics is the use of geometrical primitives such as points, lines, curves, and shapes or polygons—all of which are based on mathematical expressions—to represent images in computer graphics.

Vector graphics range in complexity from simple to moderate to extremely complex. The following are some basic examples.

  1. Simple - Callout in a document or illustration.
  2. Moderate - Illustrations such as charts, diagrams and maps.
  3. Complex - Documents such as those used for engineering.

Canvas

Canvas is a bitmap with an immediate modegraphics application programming interface (API) for drawing on it. Canvas is a “fire and forget” model that renders its graphics directly to its bitmap and then subsequently has no sense of the shapes that were drawn; only the resulting bitmap stays around.

More Information about canvas - http://tech.queryhome.com/51054/about-html5-canvas

SVG

SVG is used to describe Scalable Vector Graphics

SVG is known as a retained mode graphics model persisting in an in-memory model. Analogous to HTML, SVG builds an object model of elements, attributes, and styles. When the element appears in an HTML5 document, it behaves like an inline block and is part of the HTML document tree.

More Information about SVG - http://tech.queryhome.com/50869/about-svg-part-1

A Comparison of Canvas and SVG

Canvas

Pixel-based (canvas is essentially an image element with a drawing API)
Single HTML element similar to image in behavior
Visual presentation created and modified programmatically through script
Event model/user interaction is coarse -- at the canvas element only; interactions must be manually programmed from mouse coordinates
API does not support accessibility; markup-based techniques must be used in addition to canvas

SVG

Object Model-based (SVG elements are similar to HTML elements)
Multiple graphical elements which become part of the Document Object Model (DOM)
Visual presentation created with markup and modified by CSS or programmatically through script
Event model/user interaction is object-based at the level of primitive graphic elements -- lines, rectangles, paths
SVG markup and object model directly supports accessibility

Video Tutorial for svg and canvas

https://www.youtube.com/watch?v=_OiVBQY9hG0

Both Canvas and SVG are important components of the HTML5 graphically rich Web.Right now there are a lot of supporting libraries available on web for both svg and canvas. If I name a few Kinetics.js, Fabric.js, Raphael.js, Paper.js and many-many more. These libraries are there to make us work with these two technologies in an easy way.

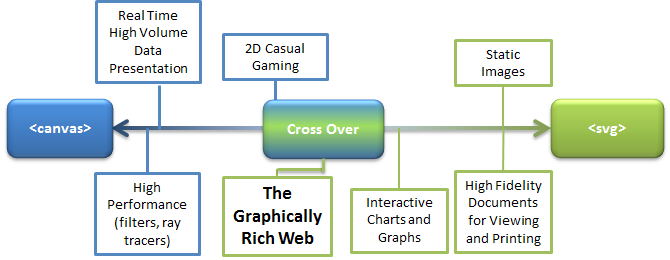

Images for svg and canvas features
