What is the area of the region where the two rectangles overlap?

+1 vote
246 views

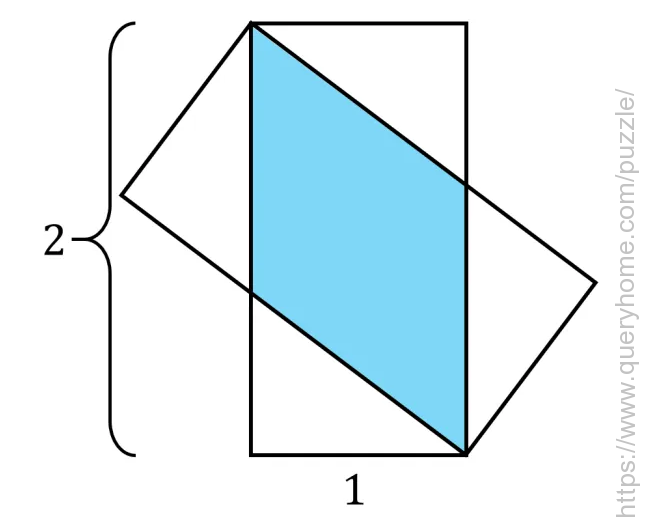

Two identical rectangles overlap, as shown below, with their opposite corners overlapping.
Each rectangle has sides of 1 and 2.
What is the area of the region where the two rectangles overlap?

enter image description here

posted Sep 1, 2020 by Mishthy Mukherjee

Share this puzzle
Facebook Share Button Twitter Share Button LinkedIn Share Button
I think it is 1.25 sq units.
AREA IS 1

2 Answers

+1 vote
answer Sep 2, 2020 by Tejas Naik
0 votes

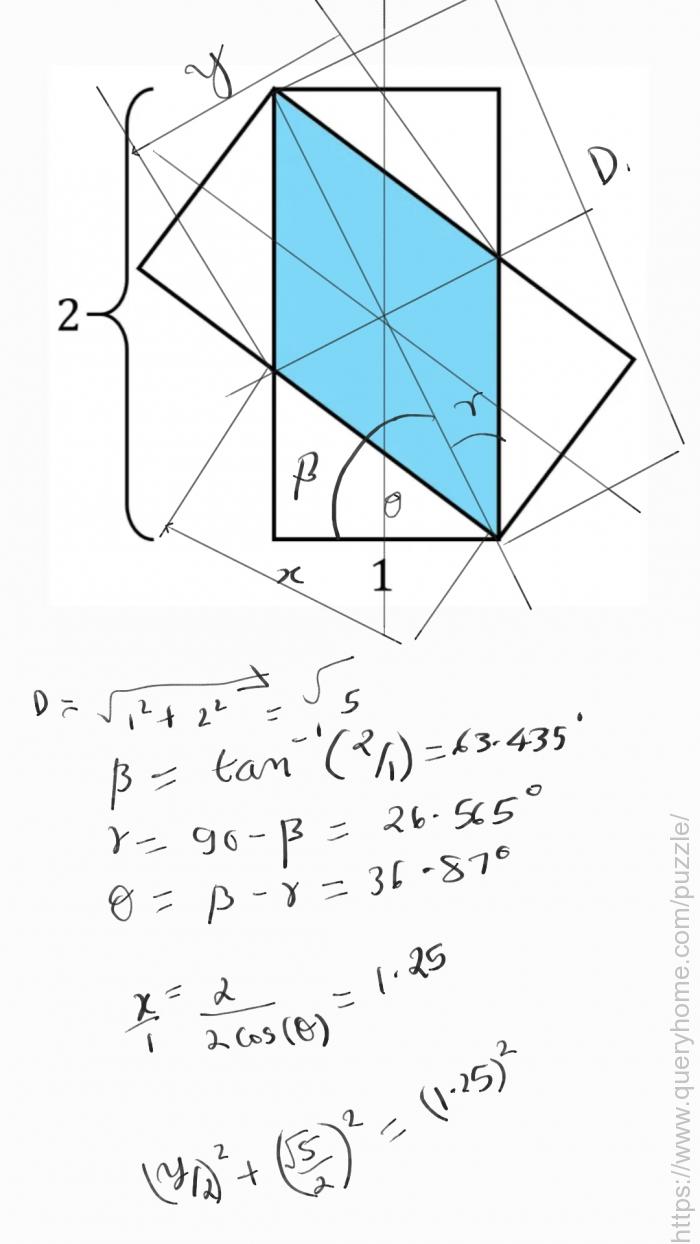

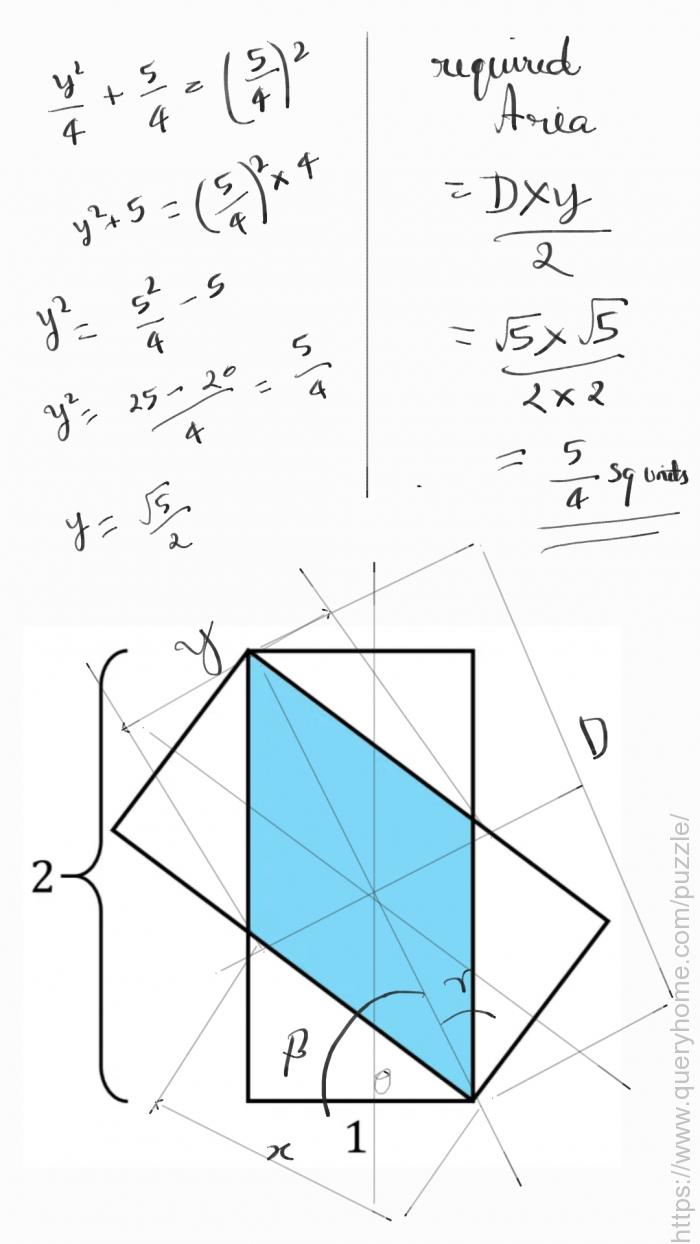

Arctan2=63.43deg
Arctan0.5=26.56deg. Then
Tan(63.43-26.56)=X/1,. X=0.75
T'he overlap àrea is 2-(0.75/2 X 2) =1.25

answer Sep 18, 2020 by anonymous
