   # What is the side length of the smallest regular hexagon that can pack 6 circles of unit length in the given way?

+1 vote
98 views

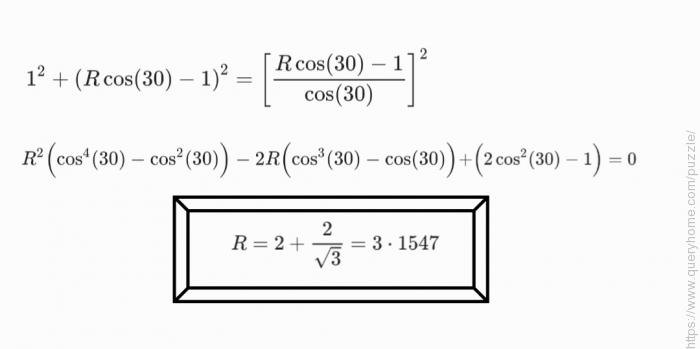

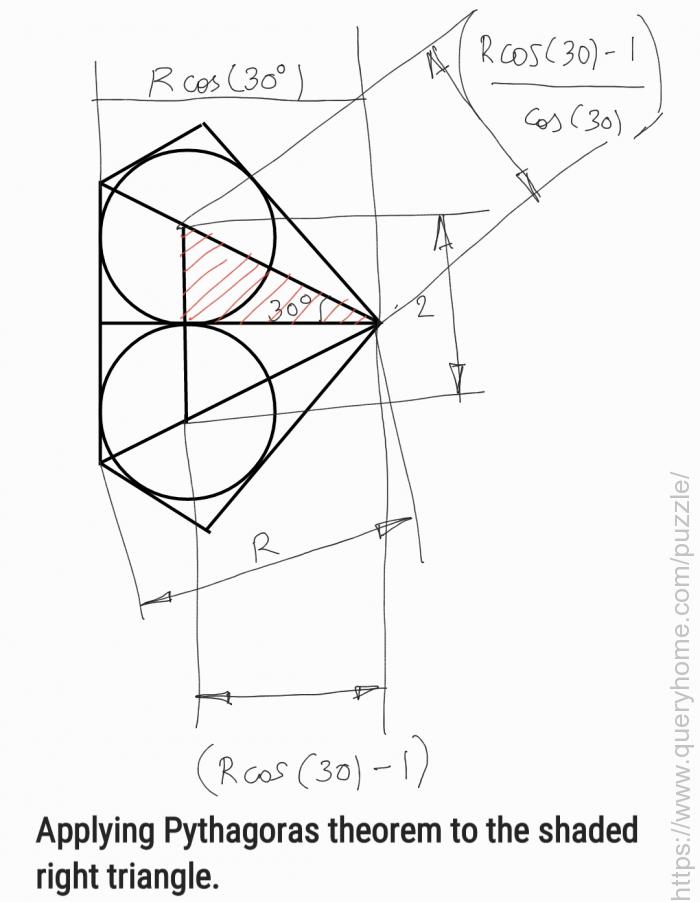

What is the side length of the smallest regular hexagon that can pack 6 circles of unit length in the given way?  posted Nov 23, 2018  Since R > the diameter of the unit circle by an amount greater than the radius of the unit circle there is room for another unit circle in the middle. Therefore for both 6 and 7 unit circles to fit in the smallest possible regular hexagon the side length of the regular hexagon is 3.1547 units. answer Nov 25, 2018
